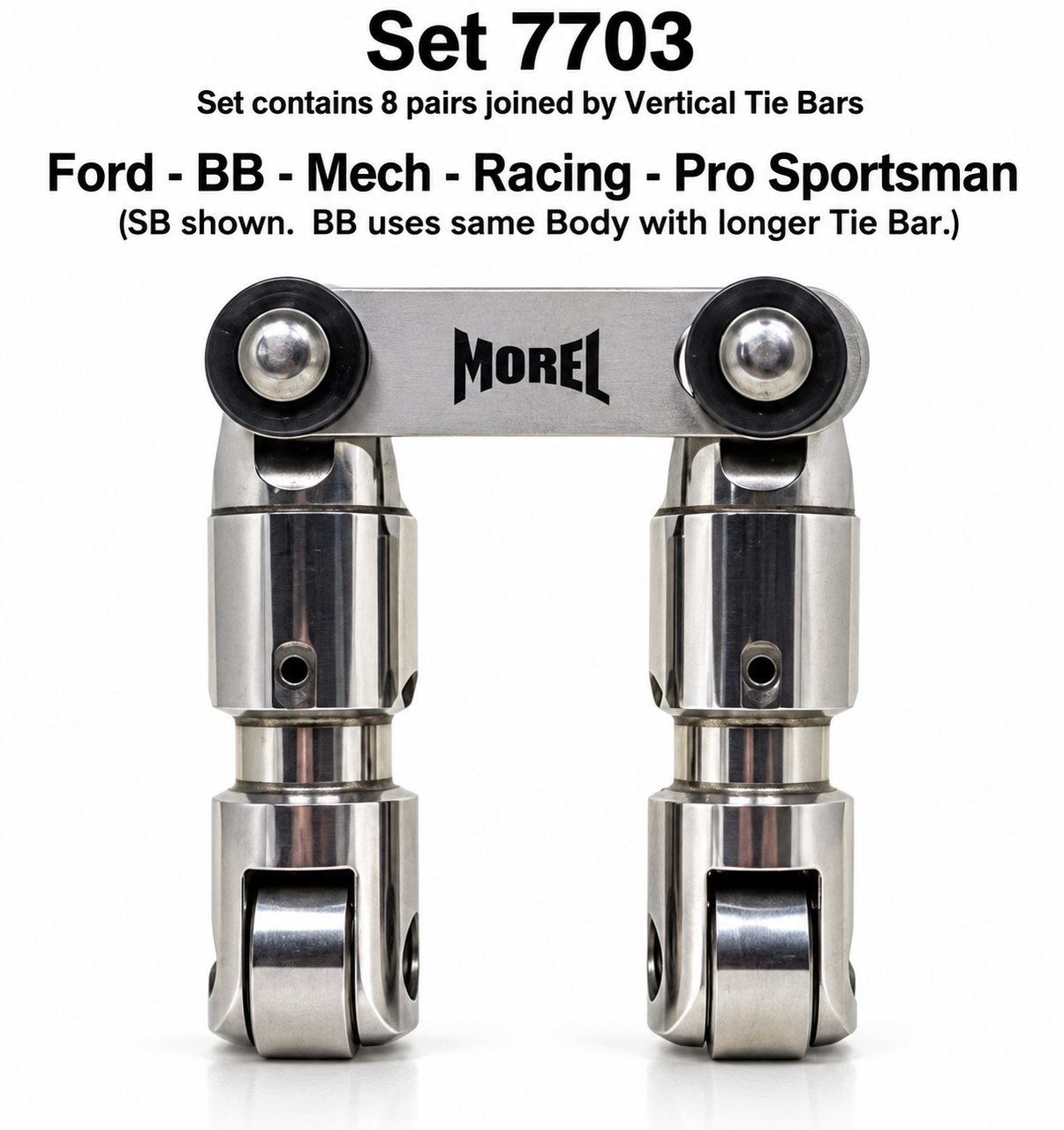

Morel T7703 Pro Sportsman Mechanical Roller Lifters are designed for high-performance Ford Big Block and FE engines equipped with solid roller camshafts.

Engineered for demanding street/strip and racing applications, these lifters feature precision-machined steel bodies, .750" roller wheels, and a vertical tie-bar design that maintains proper lifter alignment during operation.

The Pro Sportsman series incorporates pushrod oiling and an on-center pushrod configuration to support reliable valvetrain performance in properly matched high-RPM engine combinations.

T7703 Technical Specifications

• Application: Ford Big Block and FE V8 Engines
• Engine Compatibility: Ford 429–460 and FE 352, 360, 390, 406, 410, 427, 428
• Lifter Type: Mechanical / Solid Roller
• Performance Series: Pro Sportsman
• Lifter Body Diameter: .875"
• Roller Wheel Diameter: .750"
• Pushrod Location: On-Center (O/C), No Offset
• Pushrod Oiling: Yes
• Lifter Style: Vertical Tie-Bar
• Roller Bearing Type: Needle Bearing
• RPM Capability: Up to approximately 7,500 RPM
• Recommended Seat Pressure: 150–275 lbs
• Recommended Open Pressure: 400–700 lbs
• Manufacturer: Morel Lifters
• Sold As: Complete Set – 16 Lifters / 8 Pairs

Important Fitment Information

Designed for compatible Ford Big Block and FE engines using mechanical solid roller camshafts and .875" lifter bores.

Fitment Note: Ford FE and 429–460 engines have different lifter tie-bar clearance requirements. Verify the correct application, tie-bar length, lifter-bore dimensions, pushrod alignment, valve spring pressures, and camshaft compatibility before installation.

These lifters require mechanical valve-lash adjustment and are not intended for hydraulic roller camshafts.
