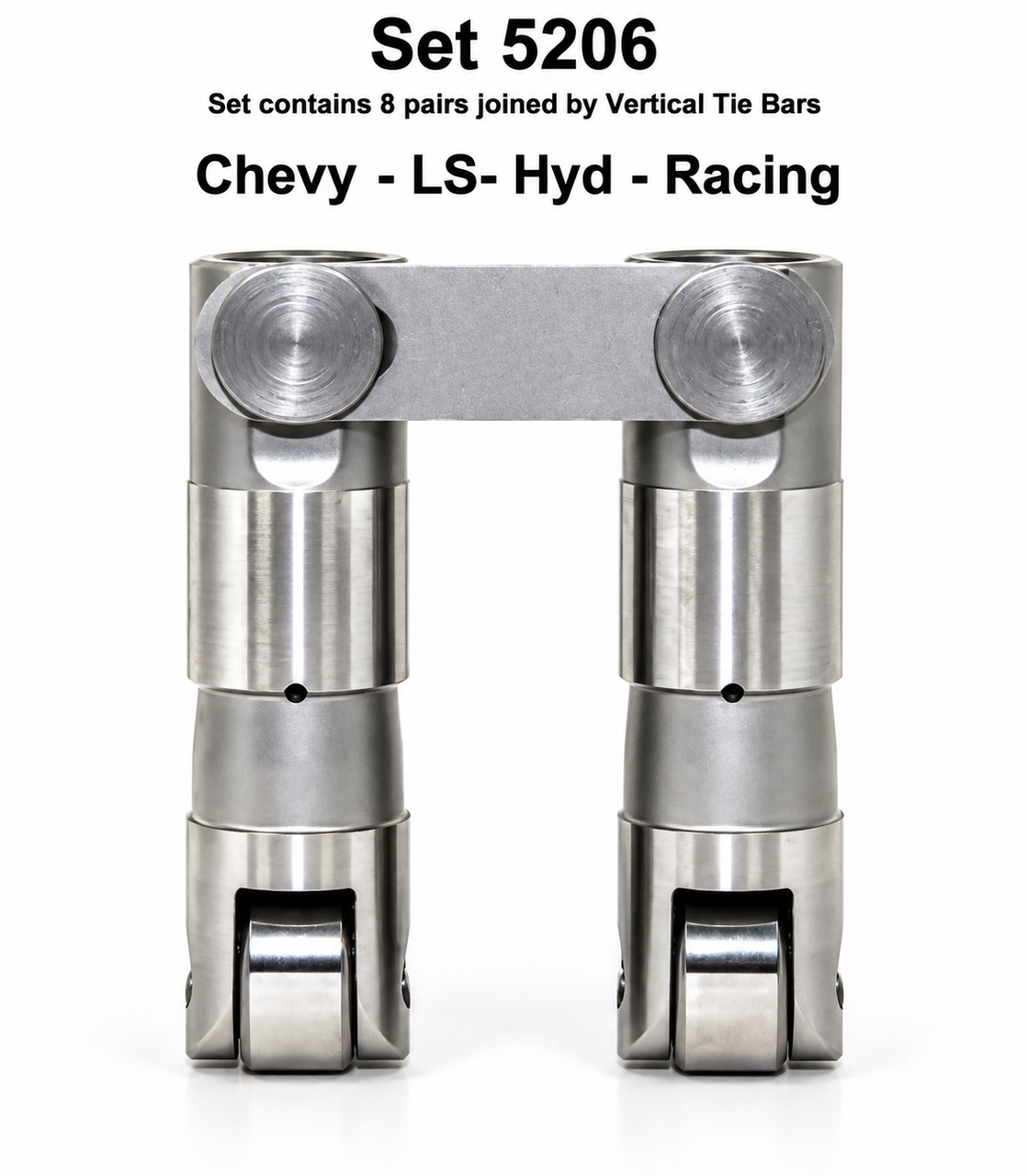

Morel T5206 Pro Series Hydraulic Roller Lifters are designed for high-performance Chevrolet LS engines requiring reliable hydraulic operation, improved valvetrain stability, and dependable performance at elevated RPM.

Manufactured with precision-machined billet steel bodies, these lifters feature .750" roller wheels, clipped axles, and a vertical tie-bar design that maintains proper lifter alignment.

The Pro Series hydraulic design incorporates .120" plunger travel and is engineered for performance applications with RPM capability up to approximately 7,000 RPM when properly matched with the engine's complete valvetrain assembly.

These lifters are an excellent upgrade for performance LS engine builds using aftermarket hydraulic roller camshafts.

T5206 Technical Specifications

• Application: Chevrolet LS V8 Engines
• Engine Family: GM Gen III / Gen IV LS
• Lifter Type: Hydraulic Roller
• Performance Series: Pro Series Hydraulic
• Lifter Body Diameter: .842"
• Roller Wheel Diameter: .750"
• Lifter Body Material: Billet Steel
• Hydraulic Plunger Travel: .120"
• Pushrod Location: On-Center (O/C)
• Lifter Style: Vertical Tie-Bar / Link-Bar
• Roller Axle: Clipped Axle
• RPM Capability: Approximately 7,000 RPM
• Recommended Seat Pressure: 100–200 lbs
• Recommended Open Pressure: 280–400 lbs
• Cylinder Head Compatibility: Fits 5-bolt and most 6-bolt head patterns
• Manufacturer: Morel Lifters
• Sold As: Complete Set – 16 Lifters / 8 Pairs

Important Fitment Information

Designed for Chevrolet LS engines equipped with hydraulic roller camshafts and .842" lifter bores.

The tie-bar configuration replaces the need for standard OEM lifter trays, making these lifters suitable for compatible performance engine builds.

Verify lifter-bore dimensions, cylinder head compatibility, pushrod length, valve spring pressures, and hydraulic lifter preload before installation.
